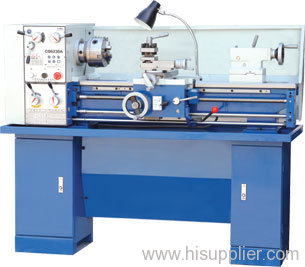

Enlarge bench lathe

bench lathe

Payment Terms: T/T L/C
Place of Origin: Anhui, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: CQ623OA
Brand Name: flydragon
Means of Transport: Ocean

Max.swing over bed 310mm
Max.swing over cross slide 180mm
Max.swing in gap 450mm

Major SpecificationsCQ623OA
Max.swing over bed310mm
Max.swing over cross slide180mm
Max.swing in gap450mm
Distance between centers750/910mm
Spindle bore38mm
Taper of spindle boreM.T.#5
Range of spindle speed65-1400rpm
(65-1810rpm optional)
Range of longitudinal feeds0.0527-1.2912mm/rev
Range of cross feeds0.014-0.3448mm/rev
Range of metric threads0.4-7mm
Range of inch threads4-60TPI
Taper of tailstock boreM.T.#3
Power of motor1.1kw.3PH/1.5kw.1PH
Unitary packaging size and weight
ModelPacking DimensionsNet WeightGross Weight
CQ6230A×750 1480×750×1420mm510kg609kg
CQ6230A×910 1680×750×1420mm510kg609kg

Asunder packaging size and weight
ModelPacking DimensionsNet WeightGross Weight
CQ6230A×7501480×750×730mm460kg530kg
CQ6230A×9101680×750×730mm460kg530kg
Left Stand600×390×350mm28kg35kg
Right Stand600×390×280mm22kg28kg
